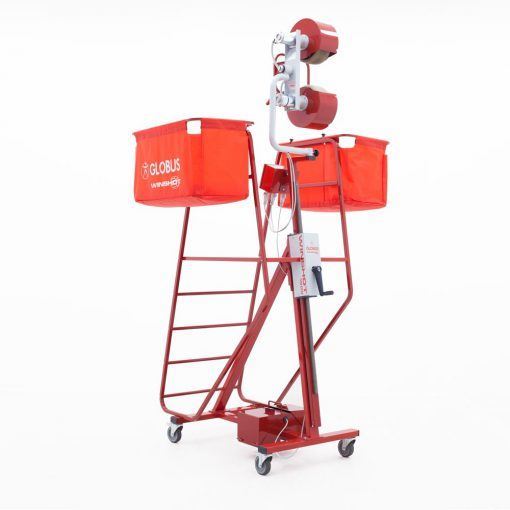

Winshot 1500

Winshot 1500 is a state-of-the-art training machine for Professional Volleyball Teams. It enables very powerful shootings from different heights, with maximum precision and every 2″. Thanks to the Speed Control System developed by Globus, every shot can be repeated without loosing precison. Winshot 1500 can simulate very realistically any kind of serve, set and spike from 1st and 2nd line, in any area of the court.
$4,950.00
Target: Inside and outside volleyball
Power Source: Power Source 220 VCA, Power Source Battery 24 VCC (optional)
Speed ​​adjustment: Electronic
Speed Control System: Yes
Saving shooting parameters: 5 memories
Dimension: 135x80x250
Shooting speed: 140
Shooting height: 340 mt
Shooting frequency: 100/5'

GLOBUS WINSHOT 1500 is a state-of-the-art Professional Training Machine for Volleyball.



GLOBUS WINSHOT 1500 can simulate any kind of serve, set and spike from 1st and 2nd line, in any area of the court.



GLOBUS WINSHOT 1500  has an extraordinary shooting power: ball speed can reach 140 km/h both in serve and in attack.



GLOBUS WINSHOT 1500 thanks to its new control panel with digital display, can shoot balls every 2″ with the same settings of speed curve and trajectory.

Winshot is a volleyball throwing machine which:



1. Quick adjustment on vertical and horizontal axis thanks to the new shooting head.

2. Balls do not wear out when shot by spinning wheels (Globus patent).

3. Powered with two batteries, with long battery life (it may be mains powered at about 220V)

4. Any kind of ball shooutin effects.

5. Perfect shots every 2 seconds.

6. 5 memories to store 5 different setting: different speed and effects parameters.

7. Speed Control System indicating when both wheels have reached the set speed.

8. Shooting speed from 10 to 140 km/h.

9. Simultaneous regulation of the wheels.

10. Easy and fast to move to any area of the court.

Shooting adjustments of Winshot 1500 with the new Electronic Control System



1. Adjustment of shooting height from cm.230 up to a cm.340.

2. Rising and lowering shooting trajectory from -45° to +135°.

The shooting head can be adjusted in height to shoot from different angles. Thanks to the new shooting head it is possible to choose the target freely and serve at different angles, to attack from 1st and 2nd line and even to set backwards and forward.

3. Left and right lateral movement of shooting direction: from +90° to -90°.

“Lateral movement” means the possibility to shoot the ball to the left or to the right.

4. Regulation of shooting speed from 10 to 140 km/h.

The speed control unit is located on the rear of the machine and controls both wheels simultaneously.

5. Regulation of shooting effects of serve (float and spin) and spike (spin) thank to the electronic control of the wheels.

6. Storage of personalized shooting parameters.

The control unit can store 5 different types of shot (speed and effect) to change the effect in a few seconds. This is very useful for training to simulate serves and attacks of different opponents.

JUMP SERVE RECEPTION

1 – Jump seves with spin

2 – Strong Jump serves

3 – The Short Serve



RECEPTION ON FLOAT SERVE

1 – Close up Float serve

2 – Far back Float serve

3 – Jump float serve



TRAINING THE DEFENCE

1 – The Defence On 1° Row Attack

2 – The Defence On 2° Row Attack



SETTING THE BALL

1 – Forward Set Training

2 – Back Set Training

FEATURES WINSHOT 1500 WINSHOT 1000 WINSHOT 800 WINSHOT 500
Shooting Speed 10 – 140 km/h 10 -140 km/h 10 -140 km/h 10-120 km/h
Shooting Height 230 – 340 cm 230 – 340 cm 230 – 310 cm 220 – 270 cm
No-Wear Wheels YES YES YES YES
Independent adjustment of shooting wheels YES YES YES YES

POWER SUPPLY
Battery Pack 2x12v YES Optional Optional Optional
Globus Battery Charger YES NO NO NO
Durata delle batterie 10 hours 8 hours 5 hours 5 hours
Alimentazione a rete Opzionale YES YES YES

ELECTRONIC CONTROL UNIT
GLOBUS DUAL CONTROL NO YES YES YES
GLOBUS CONTROL PRO YES NO NO NO
Shooting Settings Storage YES NO NO NO
Ball Speed Adjustment Digital Adj. from 0% to 100% Manual Adj.: 999 levels Manual Adj.: 999 levels Manual Adj.: 999 levels
Float and Spin Effects Adjustment Digital and Simultaneous Adjustment of Both Wheels Manual Adjustment of Both Wheels Manual Adjustment of Both Wheels Manual Adjustment of Both Wheels
Max Shooting Frequency 1 Shot every 2″ 1 Shot every 3″ 1 Shot every 3″ 1 Shot every 4″
Speed Control System YES NO NO NO
